Want to find out how you went in the 2023 Chemistry HSC? Our Chemistry team has written full 2023 HSC Chemistry Exam Paper Solutions! Read on to find out how you went!
These are the responses to the 2023 Chemistry paper, which can be found here on the NESA website.
Matrix Chemistry courses have in-depth resources and structured theory lessons taught by experts to ensure you are HSC ready!
Start HSC Chem confidently
Expert teachers, comprehensive resources, one-to-one help! Learn from home with Matrix+ Online.

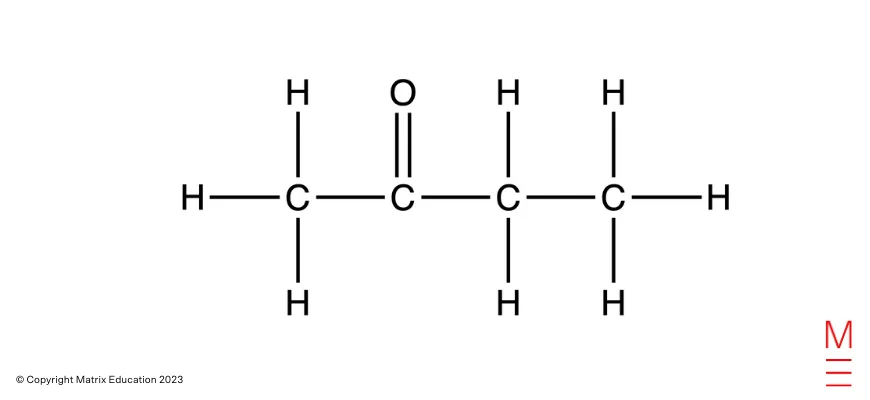

Functional group isomers: butan-2-one and butanal. Both structures have the same molecular formula (C4H8O) but different functional groups (ketone vs aldehyde).
Chain isomers: butanal and 2-methylpropanal. Both structures have the same molecular formula (C4H8O) but different parent chains (4 carbons vs 3 carbons)
HCl would be classified as an acid under the Arrhenius definition as it produces hydrogen ions when it ionises in solution:
HCl(aq) ⟶ H+(aq) + Cl−(aq)
HCl would be classified as an acid under the Brønsted-Lowry definition as it donates protons:
HCl(aq) + H2O(l) ⟶ H3O+(aq) + Cl−(aq)
NH4Cl would be classified as neutral under the Arrhenius definition as it produces neither H+ nor OH− when it dissociates in solution:
NH4Cl(aq) ⟶ NH4+(aq) + Cl−(aq)
NH4Cl would be classified as an acid under the Brønsted-Lowry definition as the ammonium ion donates protons:
NH4+(aq) + H2O(l) ⇌ NH3(aq) + H3O+(aq)
Solution X is a neutral solution (initial pH = 7) and is not a buffer, as it demonstrates no capability to resist changes in pH when a small amount of base is added. Concentrated NaOH solution contains a high concentration of OH− ions that neutralise H+ ions in solution X when the two are mixed, thus reducing the [H+] in solution X. Since pH = −log10[H+], this causes the pH of solution X to increase.
Solution Y is also a neutral solution (initial pH = 7) but is a buffer, as it demonstrates an ability to resist changes in pH when a small amount of base is added. This solution contains equimolar amounts of a weak acid (HA) and its conjugate base (A−) in equilibrium:
HA(aq) + H2O(l) ⇌ H3O+(aq) + A−(aq)
When concentrated NaOH is added, it neutralises with the weak acid (the most prevalent acid in the system), forming a salt and water:
HA(aq) + NaOH(aq) ⟶ NaA(aq) + H2O(l)
The buffer equilibrium will shift slightly to reduce [A−] and increase [HA], causing a small decrease in the [H+] and thus a small increase in pH. However, this increase is much less than that observed in solution X.
An amphiprotic ion is one that can either donate or accept a proton depending on what it reacts with (i.e., it can react as either a Brønsted-Lowry (B/L) acid or base). The hydrogen oxalate ion meets these criteria:
Reacting as B/L acid: HC2O4−(aq) + OH−(aq) ⟶ C2O42−(aq) + H2O(l)
Reacting as B/L base: HC2O4−(aq) + H3O+(aq) ⟶ H2C2O4(aq) + H2O(l)
q = mcΔT = 205 × 4.18 × (60.4-23.7) = 31448.23 J = 31.4…kJ
n = -q/ΔH = -31.4…/-5294 = 0.00594…mol
m = n × MM = 0.00594… × 130.23 = 0.774 g (3 sig figs)
Biofuels are derived from biomass, a renewable resource, whereas fossil fuels are non-renewable resources. Since the biomass is renewable, it can be replenished in a short timeframe, enabling more biofuel to be produced to replace what is consumed. In contrast, fossil fuels take millions of years to regenerate, so they are effectively a finite resource. This makes using biofuels more sustainable than using fossil fuels.
NO2(g) and N2O4(g) are in equilibrium at the end of Reactor 2: 2NO2(g) ⇋ N2O4(g). When NO2 is consumed by the reaction with water in Reactor 3, this decreases the [NO2]. According to Le Châtelier’s Principle, the NO2/N2O4 system will shift left as written above to increase the [NO2] and minimise the disturbance. Consequently, the [N2O4] will decrease. Since the reaction in Reactor 3 goes to completion, it will consume all NO2 available. This is effectively an open system that will continue to shift to replenish the lost NO2 until all the N2O4 has reacted.
Improvement 1: Rather than disposing of the water that is removed in Separator 1, this water could instead be used as a reactant in Reactor 3 (after purification), or it could be used in the cooler/condenser to reduce the temperature of the nitric oxide before it enters Reactor 2. This minimises material wastage and reduces the need to acquire additional water from elsewhere, which is more economically and environmentally sustainable.
Improvement 2: Rather than catalytically reducing the nitric oxide that is removed in Separator 2, which requires heat and an expensive catalyst, and releasing the nitrogen and oxygen gas to the atmosphere, this leftover nitric oxide could be collected and returned to Reactor 2, where it can go on to become additional nitric acid product. Again, this minimises material wastage and eliminates the need for a difficult, dangerous, and expensive waste processing procedure, which is also more economically and environmentally sustainable.
Other answers possible.
Calculation:
m(ethanol) = D × V = 0.789 × 185 = 145.965 g
n(ethanol) = m/MM = 145.965/46.068 = 3.16…mol = n(CO2)
V(CO2 ) = nRT/P = 3.16… × 8.314 × 310/100 = 81.7 L (3 sig figs)
5 mL of substance Q was added to a clean test tube in a fume hood. 10 drops of liquid bromine were added to the test tube and the colour of the mixture inspected carefully as the bromine was added. If immediate decolourisation of the brown bromine leaving a colourless solution was observed, this confirmed that substance Q was an alkene.

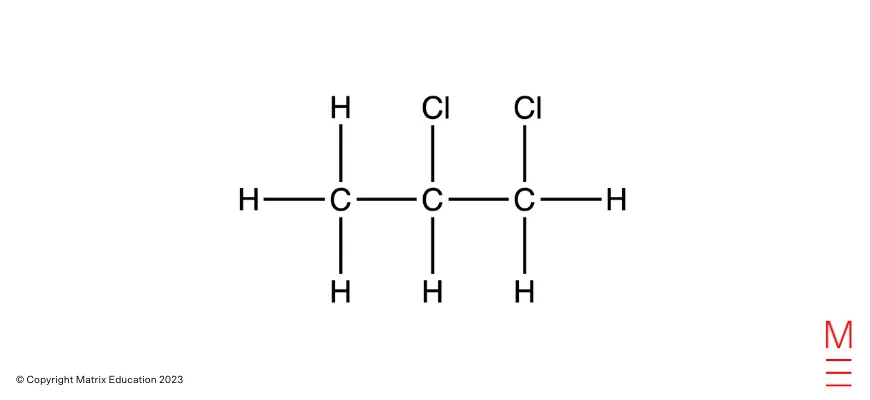

Structure:
Since R is the addition product of an alkene (Q) and Cl2(g), it must contain an even number of chlorine atoms; 2 per double bond in the alkene. Since the highest m/z peak in the mass spectrum occurs at m/z 114, there can only be two chlorine atoms in the molecule since these will account for a minimum of 70 g mol−1.
This means that there must be three molecular ion peaks due to different possible combinations of two naturally abundant chlorine isotopes, 35Cl and 37C, which occur in roughly 3:1 ratio. The first molecular ion peak (2 × 35Cl) is therefore the peak at m/z 112, the next (35Cl + 37Cl) is the peak at m/z 114, and the last (2 × 37Cl) is of too low abundance to be observed. Subtracting 70 from 112 leaves 42 g mol−1, which can consist of only carbon and hydrogen atoms. Three carbon atoms (3 × 12) and six hydrogen atoms (6 × 1) reasonably accounts for this mass and yields a reasonable structure when paired with two chlorine atoms. Finally, the proposed structure matches the quoted carbon percentage:
%C=MM(C)/MM(molecule) ×100
%C= (3×12.01)/(3×12.01+6×1.008+2×35.45) ×100=31.89%
The hydroxyl group in alkan-1-ols can form strong adhesive hydrogen bonds with water, while the hydrocarbon chain can only form weak adhesive dispersion forces with water. Thus, cohesive hydrogen bonds in water can be disrupted by the adhesive hydrogen bonds, but not the adhesive dispersion forces. This allows water to solvate the hydroxyl group but not the hydrocarbon chain. When the chain is short (and MM is small), solvation is not disrupted, hence solubility is high. However, as chain length increases (and MM increases), a larger and larger proportion of the molecule becomes unsolvated, resulting in an exponential decrease in solubility.
1. To the water sample, add 1.0 mol L−1 nitric acid (HNO3). Effervescence (appearance of bubbles) indicates the presence of carbonate ions, as carbonate ions react with acid to form carbon dioxide:
2HNO3(aq) + CO32−(aq) ⟶ CO2(g) + H2O(l) + 2NO3−(aq)
The gas can be confirmed as carbon dioxide by collecting it and bubbling it through a beaker of limewater. The limewater (Ca(OH2)) turns cloudy as carbon dioxide reacts with calcium hydroxide to form insoluble calcium carbonate:
CO2(g) + Ca(OH)2(aq) ⟶ CaCO3(s) + H2O(l)
2. If there was effervescence, continue adding nitric acid to the same sample until effervescence ceases. Then add 1.0 mol L−1 silver nitrate (AgNO3) to the same water sample. Formation of a pale-yellow precipitate indicates the presence of bromide ions, as bromide ions react with silver ions to form insoluble silver bromide:
Ag+(aq) + Br−(aq) ⟶ AgBr(s)
The precipitate can be confirmed as silver bromide by exposing it to sunlight. The solid will darken as it decomposes into silver metal and bromine gas.

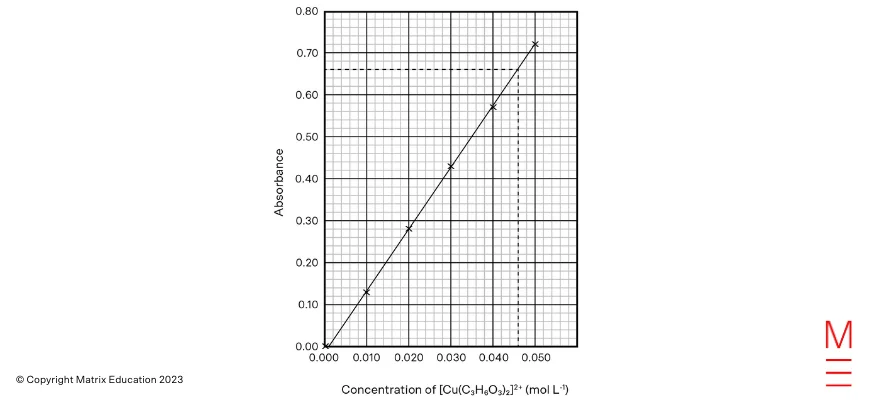

From graph:
c([Cu(C3H6O3)2]2+) at equilibrium = 0.046 mol L−1
Conc. (mol L−1) | Cu2+ | 2C3H6O3 | [Cu(C3H6O3)2]2+ |
Initial | 0.056 | 0.111 | 0 |
Change | −0.046 | −0.092 | +0.046 |
Equilibrium | 0.010 | 0.019 | 0.046 |
K= [[Cu(C3H6O3)2]2+]]/[Cu2+][C3H6O3]2 = 0.046 /(0.010 × 0.0192 ) = 12742.38227 = 13000 (2 s.f.)
HCl(aq) + NaOH(aq) ⟶ NaCl(aq) + H2O(l)
V(HCl)average = 22.05+22.00+21.95/3 = 22.00 mL = 0.022 L
n(HCl) = 0.1102 × 0.022 = 2.4244 ×10-3 mol = n(NaOH) in 20.00 mL
n(NaOH) in 250.0 mL (excess) = (2.4244 × 10-3mol)/(20) × 250 = 0.030305 mol
n(NaOH)total = 0.050 × 1.124 = 0.0562 mol
n(NaOH) reacted = 0.0562 – 0.030305 = 0.025895 mol = n(NH4+)
m(NH4+) = 0.025895 × (14.01 + 1.008 × 4) = 0.4672 g (4 s.f.)
Between 6-8 minutes, the system is at dynamic equilibrium. At dynamic equilibrium, the rate of the forward reaction is equal to the rate of the reverse reaction, hence the moles of all reaction components remain constant.
The disturbance at 8 minutes does not have any immediate effect on the moles of A2, B2 and AB2. Hence, the disturbance must be a change in temperature or volume. After the disturbance at 8 minutes, the moles of A2 and B2 increases and the moles of AB2 decreases. This means a shift in the reverse direction occurs to counteract the disturbance.
The reverse direction is endothermic, hence an increase in temperature could have occurred at 8 minutes. According to Le Chatelier’s principle, an increase in temperature shifts the equilibrium in the endothermic direction to remove added heat and minimise the disturbance.
The reverse direction has more moles of gas, hence an increase in volume or decrease in pressure could have occurred at 8 minutes. According to Le Chatelier’s principle, a decrease in pressure shifts the equilibrium in the direction with more moles of gas to increase pressure and minimise the disturbance.
MgF2(s) ⇌ Mg2+(aq) + 2F−(aq) Ksp = [Mg2+][F−]2 = 5.16 ×10-11
n(NaF) = 1.50 × 0.175 = 0.2625 mol = n(F–) total
n(MgF2 ) = 0.6231/62.31 = 0.01 mol
n(F−)used = 0.02 mol
n(F−)remaining = 0.2625 – 0.02 = 0.2425 mol
[F−] = 0.2425/0.125 +0.175 = 0.808333 mol L-1
[Mg2+] = Ksp /[F−]2 = (5.16 ×10-11)/0.8083332 = 7.90 × 10-11 mol L-1 (3 s.f.)
CHCl2COOH(aq) ⇌ CHCl2COO−(aq) + H+(aq)
[H+] at equilibrium = 10−pH = 10−1.107
Conc. (mol L−1) | CHCl2COOH(aq) | CHCl2COO−(aq) | H+(aq) |
Initial | 0.2000 | 0 | 0 |
Change | −10−1.107 | +10−1.107 | +10−1.107 |
Equilibrium | 0.2000 − 10−1.107 | 10−1.107 | 10−1.107 |
Ka = [CHCl2COO–][H+]/[CHCl2COOH] = (−10−1.107)/(0.2000 – 10−1.107) = 0.0501 (3 s.f.)
Ionisation of acetic acid:
CH3COOH(aq) ⇌ CH3COO−(aq) + H+(aq) Ka = [CH3COO–][H+]/[CH3COOH]
Ionisation of trichloroacetic acid:
CCl3COOH(aq) ⇌ CCl3COO−(aq) + H+(aq) Ka = [CCl3COO–][H+]/[CCl3COOH]
A stronger acid is more ionised; hence the equilibrium position lies further towards the right.
Since the acid dissociation constant Ka is given by [products]/[reactant], and pKa = −log10Ka, a stronger acid will have a larger Ka value and a smaller pKa. Since trichloroacetic acid has a smaller pKa than acetic acid, it is a stronger acid.
The change in Gibbs free energy indicates the equilibrium position for the ionisation of each acid. A larger positive ΔG value indicates the Gibbs free energy of the products (the ions) is much greater than the Gibbs free energy of the reactants (the intact acid). Since a system will move towards a state of lower Gibbs free energy, the system with a larger positive ΔG value will have more reactants in the system, and thus the equilibrium lies further to the left.
Since acetic acid has a larger positive ΔG value than trichloroacetic acid, its equilibrium lies further to the left and thus is a weaker acid
Compound A – Functional group: carbon-carbon double bond
Compound B – Functional group: hydroxyl group
Compound C – Functional group: carbonyl group (ketone)

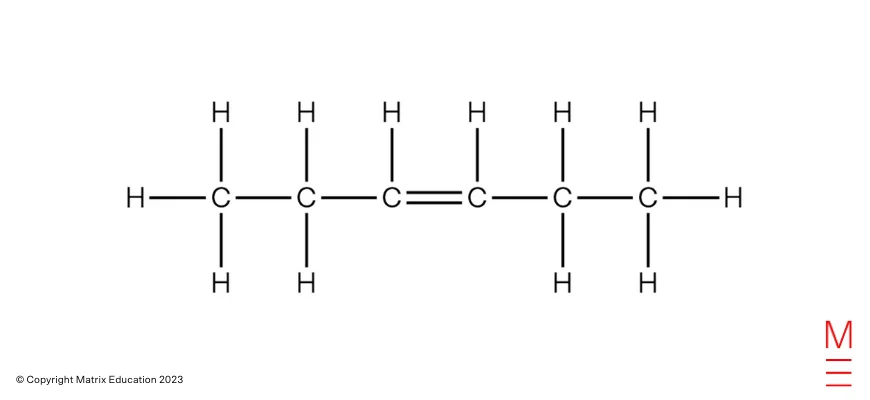

Compound A is an alkene, given that it undergoes a hydration reaction with dilute sulfuric acid to form alcohol B. The molar mass of A matches that of C6H12.

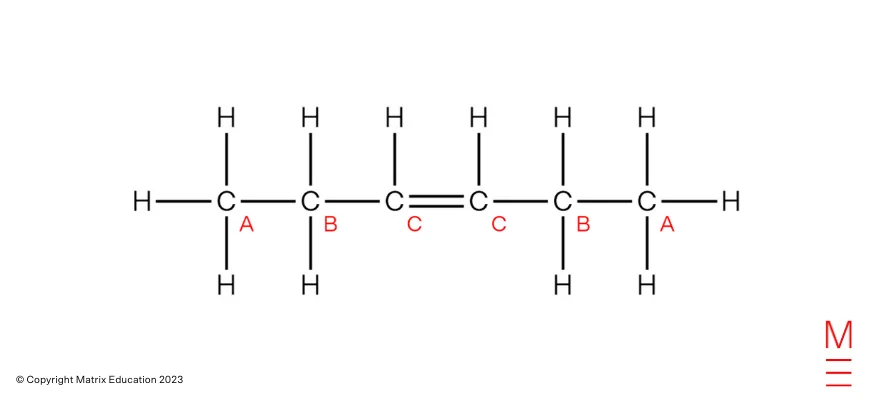

The 13C NMR spectrum indicates that only three unique carbon environments are present. The only structure with this molecular formula and 3 unique carbon environments is hex-3-ene, as shown in the diagram below, with unique environments labelled A, B and C.
The alkyl carbon environment A corresponds to the peak at ~15 ppm, and the alkyl carbon environment B corresponds to the peak at ~25 ppm (slightly more downfield as it is slightly closer to the deshielding alkene). The alkene carbon environment C corresponds to the much more downfield peak at ~130-135 ppm.

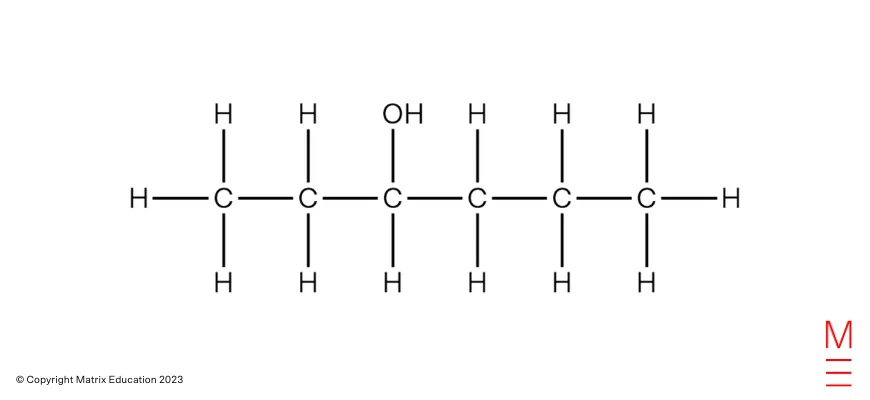

Compound B must be hexan-3-ol since it is produced from hydration of hex-3-ene. The presence of the hydroxyl group is further supported by the broad absorption between 3230-3550 cm−1 in the IR spectrum, which is characteristic of O-H bonds of alcohols.

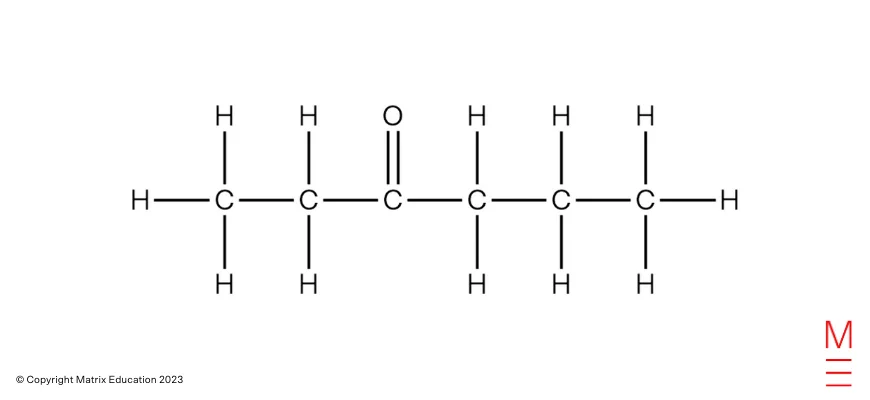

Compound C must be hexan-3-one since it is the oxidation product of hexan-3-ol. This is further supported by the 1H NMR data. Hexan-3-one has 5 unique hydrogen environments, labelled a, b, c, d, and e.

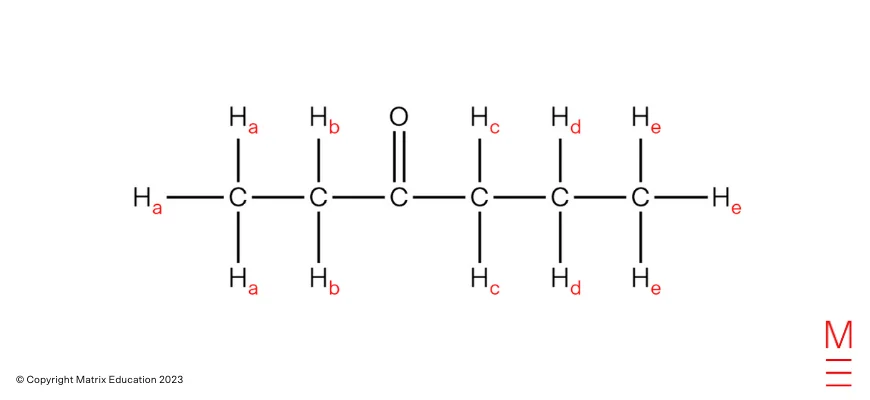

Signal at 2.46 corresponds to the 2 hydrogens in environment b. The 2 hydrogens give a peak area of 2 and the signal will be split by 3 hydrogens in environment a to give a quartet. The chemical shift is typical of hydrogens on a carbon adjacent to a carbonyl carbon.
Signal at 2.42 corresponds to the 2 hydrogens in environment c. The 2 hydrogens give a peak area of 2 and the signal will be split by 2 hydrogens in environment d to give a triplet. The chemical shift is typical of hydrogens on a carbon adjacent to a carbonyl carbon.
Signal at 1.65 corresponds to the 2 hydrogens in environment d. The 2 hydrogens give a peak area of 2 and the signal is split by 2 hydrogens in environment c and 2 hydrogens in environment c, making it a multiplet. The chemical shift is typical of hydrogens on an alkyl carbon.
Signal at 1.05 corresponds to the 3 hydrogens in environment a. The 3 hydrogens give a peak area of 3 and the signal will be split by 2 hydrogens in environment b to give a triplet. The chemical shift is typical of hydrogens on an alkyl carbon.
Signal at 1.01 corresponds to the 3 hydrogens in environment e. The 3 hydrogens give a peak area of 3 and the signal will be split by 2 hydrogens in environment d to give a triplet. The chemical shift is typical of hydrogens on an alkyl carbon.
Q = [CO2]/[CO]2 = (1.21 × 10-3)/(1.10 × 10-2)2) = 10
Since Q = K, the system is at equilibrium.
When CO2(g) is added, equilibrium shifts left according to Le Châtelier’s Principle to reduce [CO2] and minimise the disturbance.
Let additional [CO2] = Y M
[CO2]initial = 1.21 × 10-3 + Y
Conc. (mol L−1) | CO(g) | CO2(g) |
Initial | 1.10 × 10−2 | (1.21 × 10−3) + Y |
Change | +2x | −x |
Equilibrium | 1.10 × 10−2 + 2x | ((1.21 × 10−3) + Y) − x |
At equilibrium [CO] = [CO2] = 1.10 × 10−2 + 2x
K = [CO2]/[CO]2 = (1.10 × 10-2+ 2x)/((1.10 × 10-2+ 2x)2 ) = 10.00
1/1.10 × 10-2+ 2x = 10.00
2x = 1/10.00 -1.10 × 10-2 =0.089
x = 0.0445
[CO] at equilibrium = 1.10 × 10-2 +0.089 = 0.10 M
∴ [CO2] at equilibrium = 0.10 M
Conc. (mol L−1) | CO(g) | CO2(g) |
Initial | 1.10 × 10−2 | (1.21 × 10−3) + Y |
Change | + 0.089 | − 0.0445 |
Equilibrium | 0.10 | 0.10 |
[CO2]initial = 0.10 + 0.0445 = 0.1445mol L-1
[CO2]initial = 1.21 × 10−3 + Y = 0.1445mol L-1
Y = 0.1445 – 1.21 × 10−3 = 0.14329 = additional CO2
Since volume is 1L:
∴ moles of CO2 added = 0.143mol (3 s.f)
