2022 HSC Maths Standard 2 Exam Paper Solutions

The 2022 HSC Maths Std 2 Exam was on Monday 15 November. Read on to see how our Maths Team would have answered things.

Written by:
Matrix Maths Team



The 2022 HSC Maths Std 2 Exam was on Thursday 20 October. Take a look and see how our Maths Team would have answered things.

We wasted no time in compiling our solutions for the this years paper. We hope you find some common ground with your own solutions!



2022 HSC Maths Standard 2 Exam Paper Solutions

In this post, we will work our way through the 2022 HSC Maths Standard 2 Exam Paper and give you the solutions, written by our Head of Mathematics Mr. Oak Ukrit and his team.

Multiple-Choice Section

QuestionAnswerExplanation
1CNegatively skewed distributions have values concentrated towards the right.
2AThe equation \(y=-2x+2\) is a line. The y-intercept is 2, which eliminates options B and C as they have negative y-intercepts. The gradient is -2 which is negative, leaving only option A as the correct answer.
3BThe critical path is the longest path taken to complete the project.

Path ACI takes 3 + 13 + 2 = 18.

Path ADG takes 3 + 16 + 3 = 22.

Path BEH takes 2 + 9 + 6 = 17.

Path BEFG takes 2 + 9 + 2 + 3 = 16

Out of these, path ADG takes the longest time, hence is the correct answer.

4DLet the number of fish in the lake be \(x\). We can equate the proportion of tagged fish in the lake and the 40-fish sample:

\(\begin{align*}
\frac{30}{x} &= \frac{12}{40} \\ \\
12 x &= 30 \times 40 \\ \\
x &= \frac{30 \times 40}{12} \\ \\
&= 100
\end{align*}\)

5DThe new dataset in ascending order is: 5, 13, 16, 17, 17, 21, 24. The median remains to be 17. The original mean is \(\frac{13+16+17+17+21+24}{6} = 18\) and the new mean is  \(\frac{5+13+16+17+17+21+24}{7} = \frac{113}{7}\) \(\approx 16.14 \quad \text{(2 decimal places)}\).
6BOne-third of a day is \(\frac{24}{3} = 8\) hours. 8 hours is equivalent to \(8 \times 60 = 480\) minutes. The 20 minutes to one-third of a day ratio \(20:480 = 1:24\).
7CEach day, Tian is paid \(9 \times \$20.45 + \$16.20\). For 5 days, this amounts to \(5 \times (9 \times \$20.45+\$16.20) = $1001.25\).
8C\(180^\circ – 135^\circ = 45^\circ\)
9AFrom the plot, the curve lies above \(h=300\) for values between \(t = 6\) & \(t = 10\). Hence the object is above \(300m\) for \(10-6 = 4\) seconds.
10BFor each share, Alex makes \($3.40-$2.60 = $0.80\) profit. On 800 shares, this is equal to \(800 \times \$0.80 = \$640\) profit. After deducting the fee, Alex makes a total profit of \(\$640 – \$24.95 = \$615.05\).
11DSince the investment is compounded half-yearly, the rate to discount by is \(4\% \div 2 = 2\%\) or \(0.02\), and the number of periods is \(10 \times 2 = 20\). Using the present value formula, \(PV = \frac{150000}{(1+0.02)^{20}}\).
12BWhen \(H = 0\), the equation becomes \(M = 20 + 3 \times 0 = 20\). This means the predicted mark of a student will be \(20\) for zero hours of study per week, which corresponds to option B.
13BThe probability the random variable is less than \(1.94\) is equal to \(0.9738\) from the provided table. The probability the random variable is less than \(0\) is \(0.5\), as the standard normal distribution is symmetrical. Hence, the probability of between \(0\) and \(1.94\) is equal to \(0.9738-0.5 = 0.4738\).
14A\(
\begin{align*}
y &= \frac{ax-b}{2} \\
2y &= ax – b \\
ax &= 2y + b \\
x &= \frac{2y + b}{a}
\end{align*}
\)
15CThe box plot displays the number of downloads at the \(25\)th \((Q_1)\), \(50\)th \((Q_2\) or median), and \(75\)th \((Q_3)\) percentiles. From the cumulative frequency graph, this corresponds to 3, 6 and 7 downloads. The only correct option is C.

Long Response Section

Question 16

(a)

\(220-25 = 195\)

(b)

\(  50\% \times 195 = 97.5\\ \)
\( 85\% \times 195 = 165.75\\\)
Tom would benefit most from heart rates between \(97.5\) bpm and \(165.75\)bpm.

Question 17

(a)

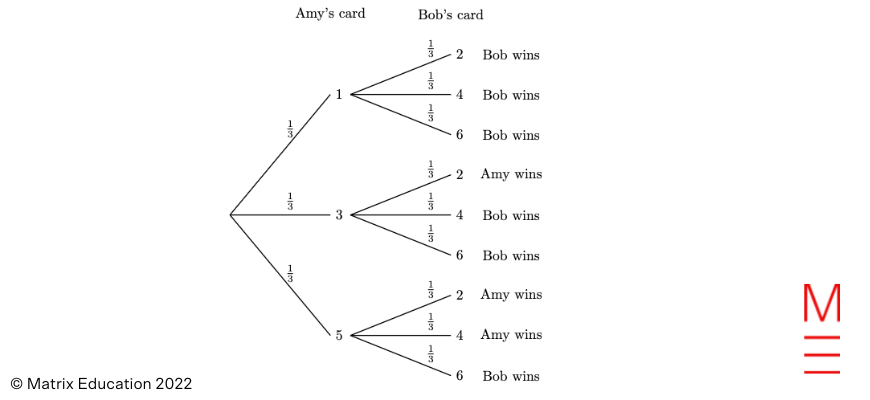

Looking at the diagram below, there are 6 ways out of 9 in which Bob ends up with a higher card than Amy. Hence, the probability that Bob wins \(\frac{6}{9} = \frac{2}{3}\).



(b)

\(\frac{2}{3} \times 30 = 20\) times.

Question 18

The \(z\)-score of 90 is:

$$z = \frac{90-60}{15} = 2$$

By the empirical (68-95-99.7) rule, there are \(\frac{100\%-95\%}{2} = 2.5\%\) marks higher than \(90\).

Question 19

(a)

The value of A can be found by adding the frequency of delivery fee complaints to the cumulative frequency of the previous category (stock shortage).

$$A = 98 + 62 = 160$$

The value of B can be found by dividing the cumulative frequency of the ‘Damaged item’ category by the total number of complaints.

$$B =\frac{192}{200}\times 100=96$$

(b)

The line graph on the Pareto chart corresponds to the cumulative percentage, with the values represented by the axis on the right of the chart. The cumulative percentage reaches a value of \(80%\) within the ‘Delivery Fee’ so \(80%\) of the complaints are stock shortages and delivery fees.

Question 20

(a)

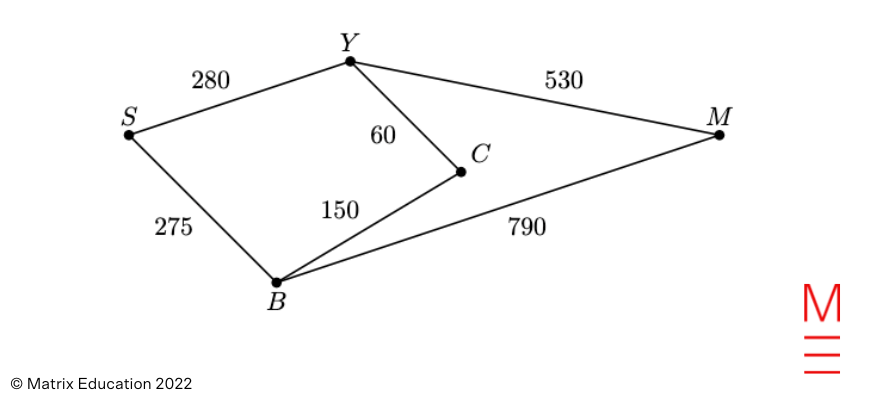

The weighted network diagram is:



(b)

The minimum spanning tree is a spanning tree connecting all the vertices together, with the smallest possible total edge weight. By connecting vertices S, B, C, Y, M, the length of this minimum spanning tree is \(275+150+60+530=1015\).



Question 21

\begin{align*}
\text{Commission} &= 800000 \times 2\% + (1500000 – 800000) \times 1.5\% \\
&= 16000 + 10500 \\
&= 26500
\end{align*}

Question 22

(a)

\begin{align*}
\text{Cost} &= 100 \times 1943 + 20180 \\
&= 194300 + 20180 \\
&= 214480
\end{align*}

(b)

\begin{align*}
C &= 100n + an + 20180 \\
97040 &= 100n + 26 n + 20180 \\
97040 – 20180 &= 100n + 26n \\
76860 &= 126n \\
n &= \frac{76860}{126} \\
n &= 610 \quad \text{laptops}
\end{align*}

Question 23

(a)

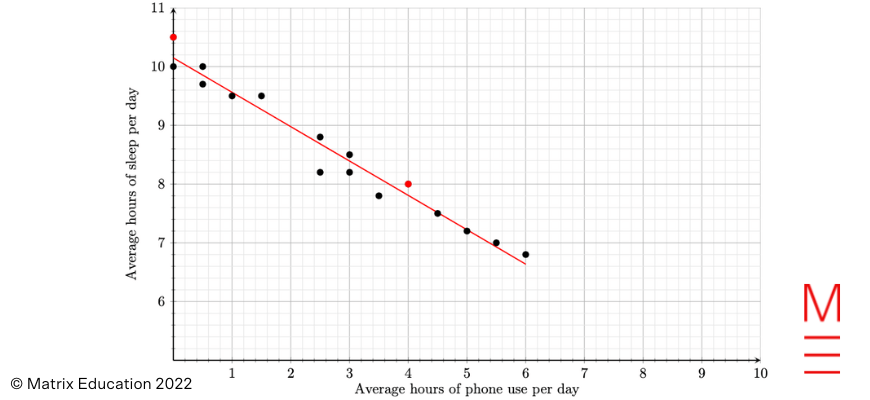

The scatterplot is shown below with the new points and line of best fit in red:



(b)

\(9\) hours

Question 24

(a)



Since \(M\) varies inversely with \(T\), we can formulate this as  \(M = \frac{k}{T}\). Substitute \(M = 12 and T = 15\) into the equation to find \(k\):

\begin{align*}
12 &= \frac{k}{15} \\
k &= 12 \times 15 \\
&= 180 \\
M &= \frac{180}{T}
\end{align*}

(b)

To complete the table, the values of \(M\) can be found substituting each \(T\) value into \(M=\frac{180}{T}\) from part (a).

T51530
M36126

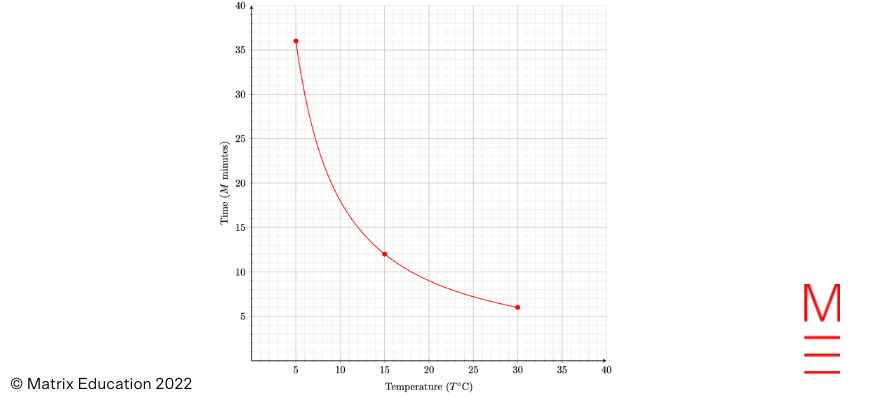

The relationship can then be graphed by plotting each of the points from the table. The line connecting the points should be curved, as the relationship \(M=\frac{180}{T}\) is fo the form \(y=\frac{k}{x}\), which is a hyperbola. Note: The question specifies “from T = 5 degrees Celsius to T = 30 degrees Celsius”, so the graph should not extend past these values.

Question 25

(a)

\begin{align*}
\text{Yearly deposit} \; &= \frac{15000}{4.184} \\
&= $3585.09
\end{align*}

(b)

\begin{align*}
\text{Interest} \; &= 15000-4 \times 3585.09 \\
&= \$660 \quad \text{(nearest dollar)}
\end{align*}



Question 26

(a)

Firstly, consider \(\triangle ABC\):

$$\begin{align*}
\tan 41^\circ &= \frac{AB}{35} \\
AB &= 35 \tan 41^\circ
\end{align*}$$

(b)

\begin{align*}
\sin \theta &= \frac{AB}{93} \\
&= \frac{35 \tan 41^\circ}{93} \\
\theta &= \sin^{-1} \left(\frac{35 \tan 41^\circ}{93}\right) \\
&= 19^\circ 6′ \quad \text{(nearest minute)}
\end{align*}



Question 27

(a) i

\begin{align*}
\text{Depreciation rate} \; &= 1 – 0.80 \\
&= 0.2 \; \text{or} \; 20\%\\
\end{align*}



(a) ii

\begin{align*}
S &= 50000 \times (0.80)^3 \\
&= $25600
\end{align*}



(b)

From the reference sheet, the straight-line depreciation formula is
\[S = V_0 – Dn\]
We have \(S = 25600\), \(V_0 = 50000\) and \(D = 12.2\% \times 50000 = 6100\).
So our formula becomes
\begin{align*}
25600 &= 50000-6100n \\ \\
-24400 &=-6100n \\ \\
n &= 4 \\ \\
∴ \text{In 4 years}
\end{align*}



Question 28

\begin{align*}
\text{Area of triangular base} &= \frac{1}{2} \times 25 \times 25 \times \sin 150^\circ \\
&= 156.25 \; \mathrm{m}^2
\end{align*}\begin{align*}
\mathrm{Volume} &= \text{Area of triangular base} \times 50 \\
&= 156.25 \times 50 \\
&= 7812.5 \mathrm{m}^3 \\
&= 7 812 500 \mathrm{L}
\end{align*}

Become a Matrix Tutor

Now hiring 2025 HSC graduates to tutor English, Maths or Science! Roles are open at Chatswood, Epping, Hurstville, Parramatta, Strathfield, and Sydney City.





Question 29

8:20 pm Wednesday +20 hours and 24 minutes = 4:44 pm Thursday
So, the plane arrives in New York at 4:44 pm Thursday (Sydney time).New York is 15 hours behind Sydney.
4:44 pm Thursday – 15 hours = 1:44 am Thursday.
Therefore, plane arrives in New York at 1:44 am Thursday (New York time).

Question 30

(a)

$$40000\left(1 + \frac{0.012}{12}\right)^{10\times 12} = $45097.17$$

(b)

Quarterly interest rate \(= \frac{0.024}{4} = 0.006 \\\)
Number of periods \(= 10 \times 4 = 40 \\\)
Future value interest rate (from table) \(= 45.05630 \\\)
\begin{align*}
\text{Option 2} \; &= $1000 \times 45.05630 \\
&= $45056.30
\end{align*}
\begin{align*}
\text{Difference} \; &= $45097.17 – $45056.30 \\
&= $40.87
\end{align*}

Question 31

(a)

Note that the flow capacity of a cut only includes flows from the source to the sink.
Flow capacity \(= 10 + 20 + 10 = 40\).

(b)



(b)

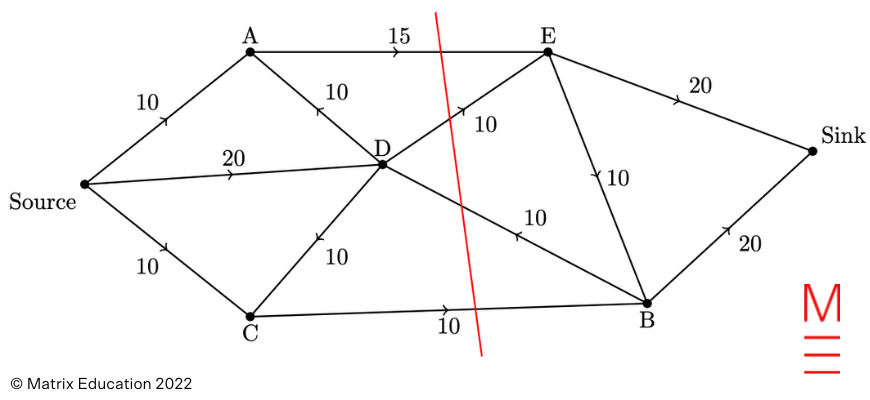

The network diagram with minimum cut in red is shown above. The flow capacity of the minimum cut \( = 15 + 10 + 10 = 35\). By the Maximum-Flow Minimum-Cut theorem, the maximum flow capacity must be \(35\) as well, which is less than 40.

(c)

We should select a path that is cut by the minimum cut.
To allow for an overall maximum flow of \(40\), the path \(AE\) can be increased by \(5\) to a capacity of \(20\).

Question 32

(a)

\begin{align*}
\text{Area of grassed section} \; &= \frac{100}{2}(160+150) + \frac{100}{2}(150+250) \\
&= 35500 \; \mathrm{m}^2
\end{align*}

(b)

\begin{align*}
\text{Area of rectangle} \; &= 200 \times 250 \\
&= 50000\; \mathrm{m}^2
\end{align*}
\begin{align*}
\text{Area of semi-circle} \; &= \frac{\pi \times 100^2}{2} \\
&= 5000\pi \; \mathrm{m}^2
\end{align*}
\begin{align*}
\text{Therefore, Area of lake} \; &= 50000 + 5000\pi – 35500 \\
&= 30208 \; \mathrm{m}^2 \quad \text{(nearest square metre)}
\end{align*}

Question 33

(a)

\(\angle AOB = 180^\circ – 135^\circ = 45^\circ \\\)
Using the cosine rule,
\begin{align*}
AB^2 &= 50^2 + 20^2 – 2(50)(20)(\cos 45^\circ) \\ \\
AB &= \sqrt{50^2 + 20^2 – 2(50)(20)(\cos 45^\circ)} \\ \\
&= 38.5 \; \mathrm{km} \quad \text{(1 decimal place)}
\end{align*}

(b)

Using the sine rule:
\begin{align*}
\frac{\sin \angle OBA}{20} &= \frac{\sin 45^\circ}{AB} \\ \\
\sin \angle OBA &= \frac{20 \sin 45^\circ}{38.5} \\ \\
\angle OBA &= \sin^{-1}\left(\frac{20 \sin 45^\circ}{38.5}\right) \\ \\
&= 22^\circ \quad \text{(nearest degree)}
\end{align*}

(c)

Bearing of \(B\) from \(A\) is \(180^\circ + 22^\circ = 202^\circ \mathrm{T}\)

Question 34

Surface area of cylinder’s base \(= \pi \times 2^2 = 4\pi \\\)
Surface area of cylinder’s curved surface \(= 2 \pi \times 2 \times 3 = 12\pi \\\)
Surface area of hemisphere’s annulus base \(= \pi \times 3^2 – \pi \times 2^2 = 5\pi \\\)
Surface area of hemisphere’s curved surface \(= \frac{4\pi \times 3^2}{2} = 18\pi \\\)Therefore, Total surface area = \(4\pi + 12\pi + 5\pi + 18\pi = 122.5 \; \mathrm{cm}^2 \quad \text{(1 decimal place)}\)

Question 35

  • The correlation coefficient of \(0.4564\) shows a moderate positive correlation between the age of characters and the age of actors. This means that as the age of the characters increases, the age of the actors also increases.
  • 15-year-old characters are played by the widest range of actors by age.
  • Jo has only collected data for character ages between 14 and 17.
  • A teenage character is generally played by an older actor.

Question 36

(a)

\(A = $199715 \times \frac{0.072}{12} = $1198.29 \\\)
\begin{align*}
B &= $199428.29 + $1196.57 – $1485 \\
&= $199139.86
\end{align*}

(b)

Without lump sum payment, the total amount repaid is:

\(1485 \times 23 \times 12 = $409860 \\\)
With lump sum payment, the total amount repaid is:

\($1485 \times 50 + $40000 + \$1485 \times 146 = $331060 \\\)
Hence, Frankie pays \($409860 – $331060 = $78800\) less.

Question 37

Split the range 820-920 at the mean to produce two sub-ranges: 820-840 and 840-920.

For \(840 – 920 \\\):
The \(z\)-score of 920 is
$$z = \frac{920-840}{80} = 1, \\$$
which means \(920\) lies 1 standard deviation from the mean, \(840\).
The empirical (68-95-99.7) rule states that 68% lies within 1 standard deviation away from the mean.

So, \(\frac{68}{2} = 34\%\) lie between \(840-920\).

For \(820-840 \\\):
We are given from the question that 60% is less than \(860\).
Since normal distributions are symmetric, then 50% lie below the mean of 840.
So, \(60-50 = 10%\) lie between \(840-860 \\\).

Again due to symmetry about the mean, this means \(10%\) lie between \(820-840\).

Overall:
Therefore, approximately \(34\% + 10\% = 44\%\) of batteries have a life span between \(820-920\) hours.

Question 38

After removing \(1.2L\)  of the mixture, there is \(4.8-1.2 = 3.6L\) remaining.

There is \(3.6 \times \frac{1}{4} = 0.9L\) of cordial.
There is \(3.6 \times \frac{3}{4} = 2.7L\) of water.

Refilling the container by adding another \(1.2L\) of water means there is now \(2.7 + 1.2 = 3.9L\) of water.

The final mixture has \(0.9L\) of cordial and \(3.9L\) of water.
Therefore, the ratio of cordial to water is:
\(0.9:3.9 = 3:13\)

Written by Matrix Maths Team

The Matrix Maths Team are tutors and teachers with a passion for Mathematics and a dedication to seeing Matrix Students achieving their academic goals.
