2019 HSC Maths Advanced Exam Paper Solutions

In this post, we give you the solutions to the 2019 Maths Advanced paper.

The 2019 HSC Mathematics Advanced (2 Unit) exam paper solutions are here!



2019 HSC Maths Advanced Exam Paper Solutions

Have you seen the 2019 HSC Mathematics Advanced (2 Unit) exam paper yet?

In this post, we will work our way through the 2019 HSC Maths Advanced (2 Unit) paper and give you the solutions, written by our Head of Mathematics Oak Ukrit and his team.

Read on to see how to answer all of the 2019 questions.



Section 1. Multiple Choice

Question NumberAnswerSolution
1.B\(\) \begin{align*}
\pi^{10} &= 93648.0478\\
&= 9.3648\times10^4\\
&= 9.4 \times 10^4 \textrm{ (2 s.f.)}\\
\end{align*}
2.D\begin{align*}
-3x &\leq 8\\
x &\geq -\frac{8}{3}
\end{align*}
3.C\begin{align*}
\frac{a^2a^{-3}}{\sqrt{a}} &= \frac{a^2a^{-3}}{a^\frac{1}{2}}\\
&= a^{2-3-1/2}\\
&= a^{-3/2}\\
∴ a^p &= a^{-3/2} \\
∴ p &= -\frac{3}{2}
\end{align*}
4.CAs the focus is to the right of the vertex, it must be a positive sideways parabola. As the vertex is at \((2,1)\), the equation must be of the form \((y-1)^2 = 4a(x-2)\). Thus the only possible solution is \(C\).
5.A\begin{align*}
\frac{\log_29}{\log_23} &= \frac{\log_23^2}{\log_23}\\
&= \frac{2\log_23}{\log_23}\\
&= 2
\end{align*}
6.C\begin{align*}
\textrm{P(winning)} &= 1 – \textrm{P(losing)} \\
&= 1 – \textrm{P(odd number)}\cdot\textrm{P(heads)} \\
&= 1 – \frac{1}{2}\cdot\frac{1}{2} \\
&= \frac{3}{4}
\end{align*}
7.DIt can be seen that the range of the curve is \(3\) units, which means the curve is stretched \(1.5\) times vertically (\(a = 1.5\)). The curve also has a period of \(\pi\), which means that the curve has been squished 2 times horizontally (\(b = 2\)).
8.CA maximum will occur at time \(t\), when the derivative at time \(t\) is \(0\), and the derivative is positive just before, and negative just after. As acceleration is the derivative of velocity, by the graph this is only satisfied at \(t = 3\).
9.A\begin{align*}
\int\tan^2x\,dx &= \int(\sec^2x-1)dx\\
&= \tan x – x + C
\end{align*}
10.CAlthough this question is easier to do by showing why the other 3 choices are false, this is why C is true.

Consider the velocity function. We know that it will equal \(0\) at \(t = 11\) and \(t=13\). We are trying to show that the velocity function must have a stationary point in between \(t = 11\) and \(t = 13\). Assume that it doesn’t have a stationary point. Therefore the velocity function must either be always increasing, or always decreasing from \(t = 11\) to \(t=13\) as it can never switch. However if this is the case, the velocity function can never come back to \(0\). Therefore this is impossible and it must have a stationary point.

Section 2. Long response

Question 11a

\begin{align*}
\frac{x}{\sin(40°)} &= \frac{8}{\sin(110°)}\\
x &= \frac{8\sin(40°)}{\sin(110°)}\\
&= 5.5 \textrm{ units (1 d.p)}
\end{align*}

Question 11b

\(u = x^2\)\(v = \sin x\)
\(u’ = 2x\)\(v’ = \cos x\)

\begin{align*}
∴ \frac{d}{dx}(x^2\sin x) &= (2x)(\sin x) + (x^2)(\cos x) \\
&= 2x\sin x + x^2\cos x \\
\end{align*}



Question 11c

\(u = 2x + 1\)\(v = x + 5\)
\(u’ = 2\)\(v’ = 1\)

\begin{align*}
\frac{d}{dx}\frac{2x+1}{x+5} &= \frac{(2)(x+5)-(2x+1)(1)}{(x+5)^2}\\
&= \frac{2x+10-2x-1}{(x+5)^2}\\
&= \frac{9}{(x+5)^2}
\end{align*}



Question 11d

\begin{align*}
a &=2000, r=\frac{-1200}{2000} = -\frac{3}{5}\\
∴ S_\infty &= \frac{2000}{1-(-\frac{3}{5})}\\
&= 1250
\end{align*}

Question 11e

\begin{align*}
\int_0^1 \frac{1}{(3x+2)^2}dx &= \int_0^1 (3x+2)^{-2} dx\\
&= \frac{1}{3}\left[\frac{(3x+2)^{-1}}{-1}\right]_0^1\\
&= -\frac{1}{3}\left[5^{-1}-2^{-1}\right]\\
&= \frac{1}{10}
\end{align*}

Question 11f

\begin{align*}
\textrm{P(2 green or 2 purple)} &= \textrm{P(2 green) + P(2 purple)}\\
&= \frac{5}{12}\times\frac{4}{11} + \frac{7}{12}\times\frac{6}{11}\\
&= \frac{31}{66}
\end{align*}



Question 11g

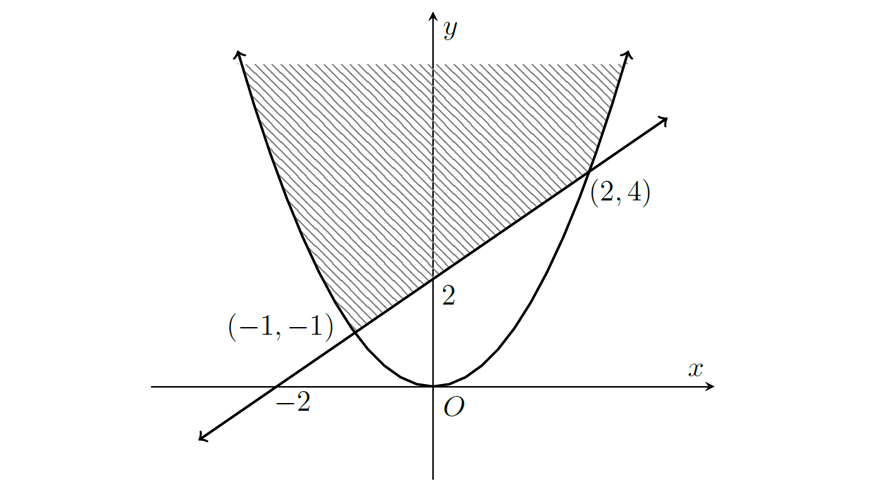

2019 HSC Maths Advanced Exam Paper Solutions question 11 g graph answer



Question 12a

Part (i)

\begin{align*}
\textrm{For line AB:}\\
x-2y+4&=0\\
2y &= x+4\\
y &= \frac{1}{2}x + 2\\
∴ m_{AB} &= \frac{1}{2}\\
∴ m_{AC} &= -2\\
\textrm{AC passes through (8,6)}
∴ y-6 &= -2(x-8)\\
y-6 &= -2x+16\\
∴ AC: 2x+y-22 &= 0
\end{align*}



Part (ii)

\begin{align*}
\textrm{For line AC, let } y = 0:\\
∴ 2x-22 &=0\\
x &= 11\\
∴ C(11,0)\\
\textrm{For line AB, let } y = 0 :\\
∴ x + 4 &= 0\\
x &= -4\\
∴ B(-4,0)\\
∴ BC &= 15\\
\textrm{height } &= 6\\
∴ \textrm{Area}_\textrm{triangle} &= \frac{1}{2}(15)(6)\\
&= 45 \textrm{ units}^2
\end{align*}



Question 12b

\begin{align*}
T_4 = a + 3d &= 6\\
a &= 6-3d\\
S_{16} = \frac{16}{2}(2a + 15d) &= 120\\
8(2(6-3d)+15d) &=120\\
12-6d+15d &= 15\\
9d &= 3\\
d &= \frac{1}{3}
\end{align*}



Question 12c

Part (i)

\begin{align*}
200000e^{-0.14\times31} = 2607 \textrm{ leaves (rounded down to nearest whole number)}
\end{align*}



Part (ii)

\begin{align*}
L(t) &= 200000e^{-0.14t}\\
L'(t) &= 200000(-0.14)e^{-0.14t}\\
&= -28000e^{-0.14t}\\
L'(31) &= -28000e^{-0.14\times31}\\
&= -365.02 \textrm{ leaves per day (2 d.p)} \\
& ∴ \textrm{365 leaves fall per day}
\end{align*}



Part (iii)

\begin{align*}
200000e^{-0.14t} &= 100\\
e^{-0.14t} &= \frac{1}{2000}\\
-0.14t &= \ln \frac{1}{2000}\\
t &= \frac{1}{-0.14}\ln \frac{1}{2000}\\
&= 54.29 \textrm{ days (2 d.p)} \\
&∴ \textrm{55th day} \\
\end{align*}



Question 12d

\begin{align*}
A &= \int_0^3\frac{3x}{x^2+1}dx\\
&= \frac{3}{2} \int_0^3\frac{2x}{x^2+1}dx\\
&=\frac{3}{2} \left[\ln(x^2+1)\right]_0^3\\
&= \frac{3}{2}\ln10 \textrm{ units}^2
\end{align*}



Question 13a

\begin{align*}
2\sin x\cos x &= \sin x &&\\
2\sin x\cos x – \sin x &= 0 &&\\
\sin x(2\cos x-1) &= 0\\ &&\\
\sin x &= 0 & 2\cos x -1 &= 0\\
x &= 0, \pi, 2\pi & 2\cos x &= 1\\
&& \cos x &= \frac{1}{2}\\
&& x &= \frac{\pi}{3},\frac{5\pi}{3}\\
∴ x &= 0, \frac{\pi}{3},\pi,\frac{5\pi}{3},2\pi
\end{align*}



Question 13b

\begin{align*}
\textrm{Perimeter} = \textrm{line AB} + \textrm{arc AB}\\
OA = OB \textrm{ (radii of circle)}\\
∴\Delta OAB \textrm{ is isoceles}\\
∴ \angle OBA = \angle BAO &= \frac{180°-70°}{2}\\
&= 55°\\
\textrm{Applying sine rule to }&\Delta OAB:\\
\frac{\textrm{line AB}}{\sin(70°)} &= \frac{20}{\sin(55°)}\\
\textrm{line AB} &= \frac{20\sin(70°)}{\sin(55°)}\\
\textrm{Also:}\\
\textrm{arc AB} &= r\theta\\
&= 20\times\frac{70°\times\pi}{180°}\\
∴ \textrm{Perimeter} &= \frac{20\sin(70°)}{\sin(55°)} + 20\times\frac{70°\times\pi}{180°}\\
&= 47.4 \textrm{ cm (1 d.p)}
\end{align*}



Question 13c

Part (i)

\begin{align*}
\frac{d}{dx}(\ln x)^2 &= 2\ln x \times \frac{1}{x}\\
&= \frac{2\ln x}{x}
\end{align*}



Part (ii)

\begin{align*}
\frac{d}{dx}(ln x)^2 &= \frac{2\ln x}{x}\textrm{ (from (i))}\\
∴ \int \frac{2\ln x}{x}dx &= (\ln x)^2 + C\\
∴ \int \frac{\ln x}{x}dx &= \frac{1}{2}(\ln x)^2 + C
\end{align*}



Question 13d

\begin{align*}
V &= \pi\int_a^by^2dx\\
&= \pi\int_0^1(x-x^3)^2dx\\
&= \pi\int_0^1(x^2-2x^4+x^6)dx\\
&= \pi\left[\frac{x^3}{3}-\frac{2x^5}{5}+\frac{x^7}{7}\right]_0^1\\
&= \pi\left(\frac{1}{3}-\frac{2}{5}+\frac{1}{7}\right)\\
&=\frac{8\pi}{105} \textrm{ units}^3
\end{align*}



Question 13e

Part (i)

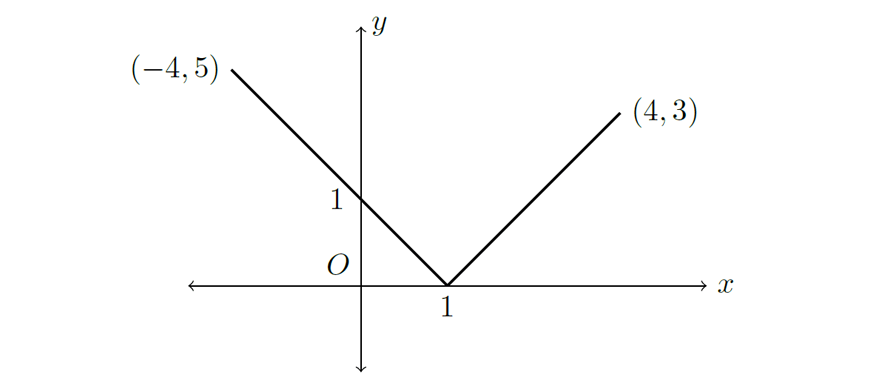

2019 HSC Maths Advanced Exam Paper Solutions question 13 e part 1 graph answer


Part (ii)

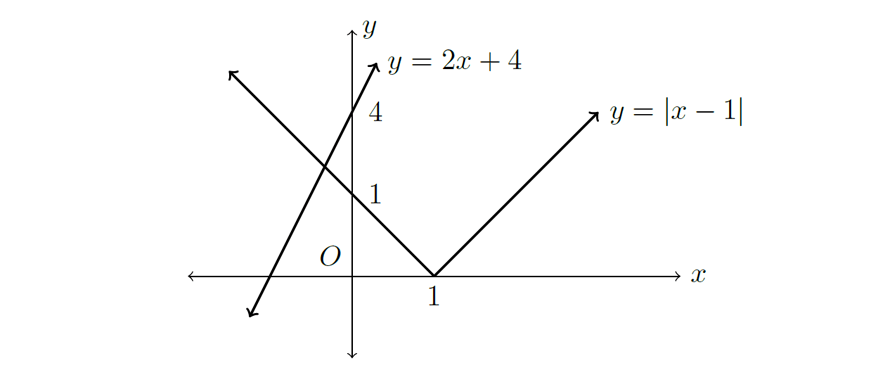

2019 HSC Maths Advanced Exam Paper Solutions question 13 e part 2 graph answer

From the sketch, there is only one solution for \(2x+4 = |x-1|\), which occurs on the negative branch.
\begin{align*}
∴2x+4 &= 1-x\\
3x &= -3\\
x &= -1
\end{align*}



Question 14a

\begin{align*}
\frac{dv}{dt} &= e^{2t}-4\\
v &= \frac{1}{2}e^{2t}-4t + C\\
\textrm{At }t &= 0, v=0:\\
∴ 0 &= \frac{1}{2} + C\\
C &= -\frac{1}{2}\\
∴ v&= \frac{1}{2}e^{2t}-4t-\frac{1}{2}
\end{align*}



Question 14b

Part (i)

\begin{align*}
f'(x) &= 3x^2+2x-1\\
\textrm{Let } f'(x) = 0:\\
∴ 3x^2+2x-1 &= 0\\
(x+1)(3x-1) &= 0\\
∴ x&=-1,\frac{1}{3}\\
f”(x) &= 6x + 2\\
f”(-1) &= -4 < 0\\
f”(\frac{1}{3}) &= 4 > 0\\
∴ \textrm{ minimum at } x&=\frac{1}{3}, \textrm{ maximum at } x=-1
\end{align*}



Part (ii)

\begin{align*}
f(x) &= x^3 + x^2 – x + C\\
f(0) &= 4\\
∴ C &= 4\\
∴ f(x) &= x^3 + x^2 – x + 4
\end{align*}



Part (iii)

\begin{align*}
\textrm{minimum at } \left(\frac{1}{3}, \frac{103}{27}\right), \textrm{ maximum at } (-1, 5)\\
\textrm{y-intercept at } (0,4)
\end{align*}

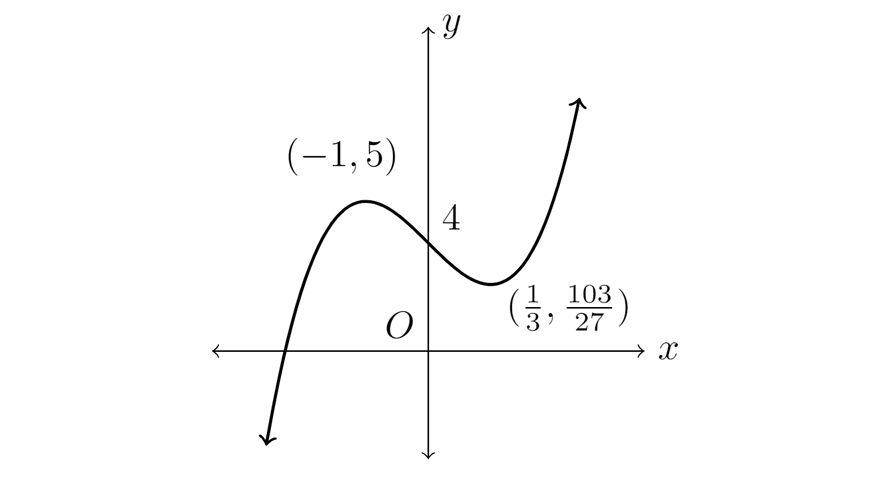

2019 HSC Maths Advanced Exam Paper Solutions question 14b part 3 graph answer



Part (iv)

\begin{align*}
f”(x) = 6x + 2 &< 0\\
6x < -2\\
x < -\frac{1}{3}
\end{align*}



Question 14c

The sum of the interior angles of hexagon is \((6-2)\times 180^{\circ} = 720^{\circ}\) and thus every interior angle of this regular hexagon is \(720^\circ \div 6 = 120^\circ\).
\begin{gather*}
\triangle AFE \text{ is isosceles} \quad (∵ AF = AE = 1) \\
\angle AFE = 120^\circ \quad (∵ \text{interior angle of hexagon}) \\
∴ \angle FAE + \angle AEF = 60^\circ \quad (∵ \text{angle sum of triangle}) \\
\angle FAE = \angle AEF \quad (∵ \text{base angles of isos. triangle are equal}) \\
∴ \angle AEF = 30^\circ \\
\angle AED = \angle DEF – \angle AEF = 120^\circ – 30^\circ = 90^\circ \\
∴ \triangle DEX \text{ is a right angled triangle} \\
\angle EDX = 180^\circ – 120^\circ = 60^\circ \quad (∵ \text{supplementary angles})
\end{gather*}
Therefore from applying trig ratios on \(\triangle DEX\) we have that:
\begin{gather*}
\tan 60^\circ = \dfrac{EX}{ED} = \dfrac{EX}{1} = EX \\
EX = \sqrt{3}
\end{gather*}



Question 14d

\begin{align*}
y &= x^3+ax^2+bx+4\\
\frac{dy}{dx} &= 3x^2+2ax+b\\
\textrm{At }x&=2, \frac{dy}{dx}=1\\
∴ 1 &= 12 + 4a + b\\
∴ 4a + b &= -11\quad\textrm{(1)}\\
\textrm{At} x &=2, y=-2\\
-2 &= 2^3 + 2^2(a) + 2b + 4\\
4a + 2b &= -14\quad\textrm{(2)}\\
\textrm{(2)} &- \textrm{(1)}\\
∴ b &= -3\\
∴ a &= -2
\end{align*}



Question 15a

\begin{align*}
e^{\ln x^2} &= x+6\\
x^2 &= x + 6\\
x^2 – x – 6 &= 0\\
(x-3)(x+2) &= 0\\
x &= 3, -2\\
\textrm{However, } x &> 0\\
∴ x &= 3
\end{align*}

Question 15b

\begin{align*}
CB &= \sqrt{q^2 + h^2}\\
AC &= \sqrt{p^2 + h^2}\\
AB^2 &= AC^2 + BC^2\\
∴ (p+q)^2 &= p^2 + h^2 + q^2 + h^2\\
p^2 + 2pq + q^2 &= p^2 + 2h^2 + q^2\\
2pq &= 2h^2\\
pq &= h^2\\
∴ h &= \sqrt{pq}\,\, (h>0 \textrm{ as h is a length})
\end{align*}



Question15c

Part (i)

\begin{align*}
\angle AQP = \angle PRB = 90° \textrm{ (given)}\\
RP\,&//\,AQ \textrm{ (given)}\\
∴ \angle QAB &= \angle RPB \textrm{ (corresponding angles on parallel lines)}\\
∴ \Delta PRB&\,|||\,\Delta AQP \textrm{ (equiangular)}\\
∴ \frac{x}{1} &= \frac{8}{BR} \textrm{ (corresponding sides of similar triangles in ratio)}\\
∴ BR &= \frac{8}{x}\\
\textrm{Extend BR and AQ to meet at S}\\
∴ BS &= \frac{8}{x} + 1\\
AS &= x+8\\
∴ D^2 &= \left(\frac{8}{x} + 1\right)^2 + (x+8)^2 \textrm{ as required}
\end{align*}

Part (ii)

\begin{align*}
D^2 &= (x+8)^2 + \left(\frac{8}{x} + 1\right)^2\\
\frac{d(D^2)}{dx} &= 2(x+8) + 2\left(\frac{8}{x}+1\right)\left(\frac{-8}{x^2}\right)\\
&= 2x+16 \ – \frac{16}{x^2}\left(\frac{8}{x}+1\right)\\
&= 2x+16 \ – \frac{128}{x^3}-\frac{16}{x^2}\\
&= 2x+16 \ – 128x^{-3}-16x^{-2}\\
\textrm{Sub } x=2:\\
\frac{d(D^2)}{dx} &= 2(2) + 16 \ – 128(2)^{-3}-16(2)^{-2}\\
&= 0\\
∴ &\textrm{ stationary point at } x=2\\
\frac{d^2(D^2)}{dx^2} &= 2 + 384x^{-4} + 32x^{-3}\\
\textrm{Sub } x=2:\\
\frac{d^2(D^2)}{dx^2} &= 2 + 384(2)^{-4} + 32(2)^{-3}\\
&= 30 > 0\\
∴ D^2 &\textrm{ is minimum at } x = 2
\end{align*}



Question15d

Part (i)

\begin{align*}
\textrm{P(at least 1 red hair for 2 people)} &= 1- \textrm{P(no red hair for 2 people)}\\
&= 1 – (0.98\times0.98)\\
&= 0.0396
\end{align*}



Part (ii)

\begin{align*}
\textrm{P(at least 1 red hair for n people)} &= 1- \textrm{P(no red hair for n people)}\\
&= 1- 0.98^n\\
∴ 1-0.98^n &> 0.4\\
0.6 &> 0.98^n\\
\ln{0.6} &> n\ln{0.98}\\
n &> \frac{\ln 0.6}{\ln 0.98}\\
&> 25.285…\\
& ∴ \textrm{at least 26 people}
\end{align*}



Question 16a

Part (i)

\begin{align*}
A_0 &= 1000000\\
A_1 &= 1000000\times(1+\frac{0.06}{4})^4-80000 = 1000000\times1.015^4-80000\\
A_2 &= (1000000\times1.015^4-80000)\times1.015^4 -80000\\
&= 1000000\times1.015^8 -80000(1+1.015^4)
\end{align*}



Part (ii)

\begin{align*}
A_n &= 1000000\times1.015^{4n} – 80000(1+1.015^4+1.015^8+…+1.015^{4(n-1)})\\
&= 1000000\times1.015^{4n} – 80000\left(\frac{1.015^{4n}-1}{1.015^4-1}\right)\\
&= 1000000\times1.015^{4n} – \frac{80000}{1.015^4-1}(1.015^{4n})+\frac{80000}{1.015^4-1}\\
&= 1.015^{4n}\left(1000000-\frac{80000}{1.015^4-1}\right)+\frac{80000}{1.015^4-1}\\
\textrm{Let }A_n = 0:\\
∴ 0 &= 1.015^{4n}\left(1000000-\frac{80000}{1.015^4-1}\right)+\frac{80000}{1.015^4-1}\\
-\frac{80000}{1.015^4-1} &= 1.015^{4n}\left(1000000-\frac{80000}{1.015^4-1}\right)\\
\frac{-\frac{80000}{1.015^4-1}}{1000000-\frac{80000}{1.015^4-1}} &= 1.015^{4n}\\
4.29266 &= 1.015^{4n}\\
\log_{1.015}4.29266 &= 4n\\
n &= \frac{1}{4}\times\frac{\ln4.29266}{\ln1.015}\\
&= 24.46\\
∴ 24 \textrm{ years}
\end{align*}





Question 16b

\begin{align*}
\textrm{Particle is at rest when }v&=0:\\
∴ 0 &= e^{\cos t}-1\\
1 &= e^{\cos t}\\
0 &= \cos t\\
∴ t &= \frac{\pi}{2} \textrm{ (take first solution)}\\
\end{align*}
\begin{align*}
∴ \textrm{ One application of Simpson’s rule takes points at } t=0,\frac{\pi}{4},\frac{\pi}{2}\\
\textrm{and } v= e-1, e^{\frac{1}{\sqrt{2}}}-1, 0 \textrm{ respectively}\\
\end{align*}



\(t\)\(0\)\(\frac{\pi}{4}\)\(\frac{\pi}{2}\)
\(v\)\(e-1\)\(e^{\frac{1}{\sqrt{2}}}-1\)\(0\)



\begin{align*}
∴ x &= \frac{\frac{\pi}{4}}{3}(e-1+0+4(e^{\frac{1}{\sqrt{2}}}-1))\\
&= 1.53 \textrm{ units to the right of the origin} \textrm{ (2 d.p)}
\end{align*}



Question 16c

Part (i)

\begin{align*}
y&=x^r\\
\frac{dy}{dx} = rx^{r-1}\\
\textrm{At }x=1:\\
\frac{dy}{dx} = r\\
∴ \textrm{equation of tangent:}\\
y-1&=r(x-1)\\
\textrm{At }y=0:\\
-1&=r(x-1)\\
\frac{-1}{r} &= x-1\\
x &= 1-\frac{1}{r}\\
&= \frac{r-1}{r} \textrm{ as required}
\end{align*}



Part (ii)

\begin{align*}
R &= \int_0^1x^r\,dx – A_\Delta\\
&= \left[ \frac{x^{r+1}}{r+1}\right]_0^1 – \frac{1}{2}(1-\frac{r-1}{r})(1)\\
&= \frac{1}{r+1} -\frac{1}{2r}\\
&= \frac{2r-(r+1)}{2r(r+1)}\\
&= \frac{r-1}{2r(r+1)} \textrm{ as required}
\end{align*}



Part (iii)

\begin{align*}
R &= \frac{r-1}{2r(r+1)}\\
&= \frac{r-1}{2r^2+2r}\\
\frac{dR}{dr} &= \frac{2r^2+2r – (r-1)(4r+2)}{(2r^2+2r)^2}\\
&= \frac{2r^2+2r – 4r^2 + 4r – 2r + 2}{(2r^2+2r)^2}\\
&= \frac{-2r^2+4r+2}{(2r^2+2r)^2}\\
\textrm{Let }\frac{dR}{dr} &= 0\\
∴ -2r^2+4r+2 &= 0\\
r^2-2r-1 &= 0\\
r &= \frac{2 \pm \sqrt{2^2-4(1)(-1)}}{2}\\
&= \frac{2 \pm \sqrt{8}}{2}\\
&= 1 \pm \sqrt{2}\\
∴ \textrm{ stationary points at } r = 1\pm \sqrt{2}
\end{align*}



\(r\)\(-0.5\)\(1-\sqrt{2}\)\(-0.1\)\(0.1\)\(1+\sqrt{2}\)\(3\)
\(\frac{dR}{dr}\)\(-2\)\(0\)\(48.77\)\(49.17\)\(0 \)\( -0.0069\)
\(–\)\(+\)\(+\)\(–\)

(Note: the points chosen on either side of the stationary points must be continuous!)



\begin{align*}
∴ R \textrm{ is a maximum at } r = 1 + \sqrt{2}
\end{align*}



Want to know your ATAR?

Use the calculator to explore the HSC Marks you need to achieve your ATAR Goal.







Written by Matrix Maths Team

The Matrix Maths Team are tutors and teachers with a passion for Mathematics and a dedication to seeing Matrix Students achieving their academic goals.



© Matrix Education and www.matrix.edu.au, 2018. Unauthorised use and/or duplication of this material without express and written permission from this site’s author and/or owner is strictly prohibited. Excerpts and links may be used, provided that full and clear credit is given to Matrix Education and www.matrix.edu.au with appropriate and specific direction to the original content.

Get free study tips and resources delivered to your inbox.

Join 75,893 students who already have a head start.

Our website uses cookies to provide you with a better browsing experience. If you continue to use this site, you consent to our use of cookies. Read our cookies statement.

OK, I understand
